MOD-14 Phantom | Modular Monocular Housing

Lead Time: 8-12 weeks from order date (contact us with any questions)

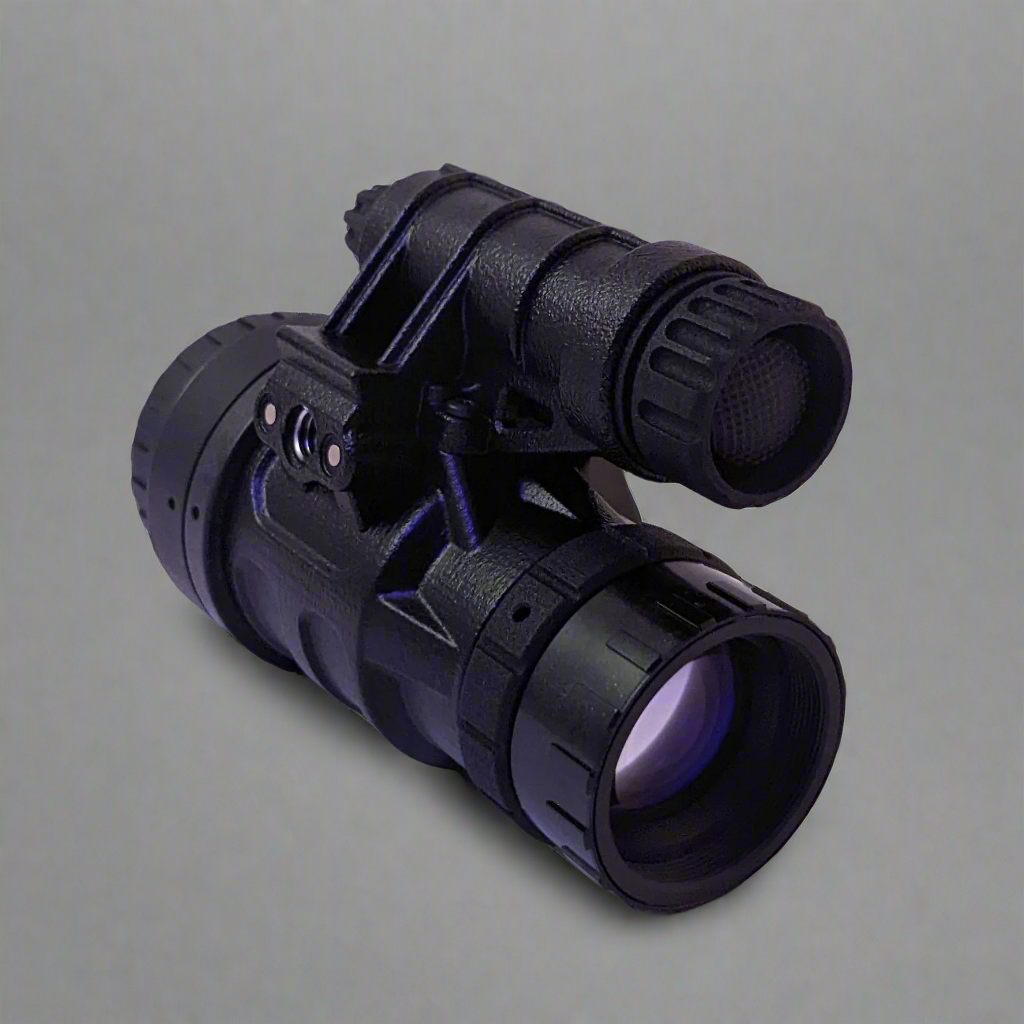

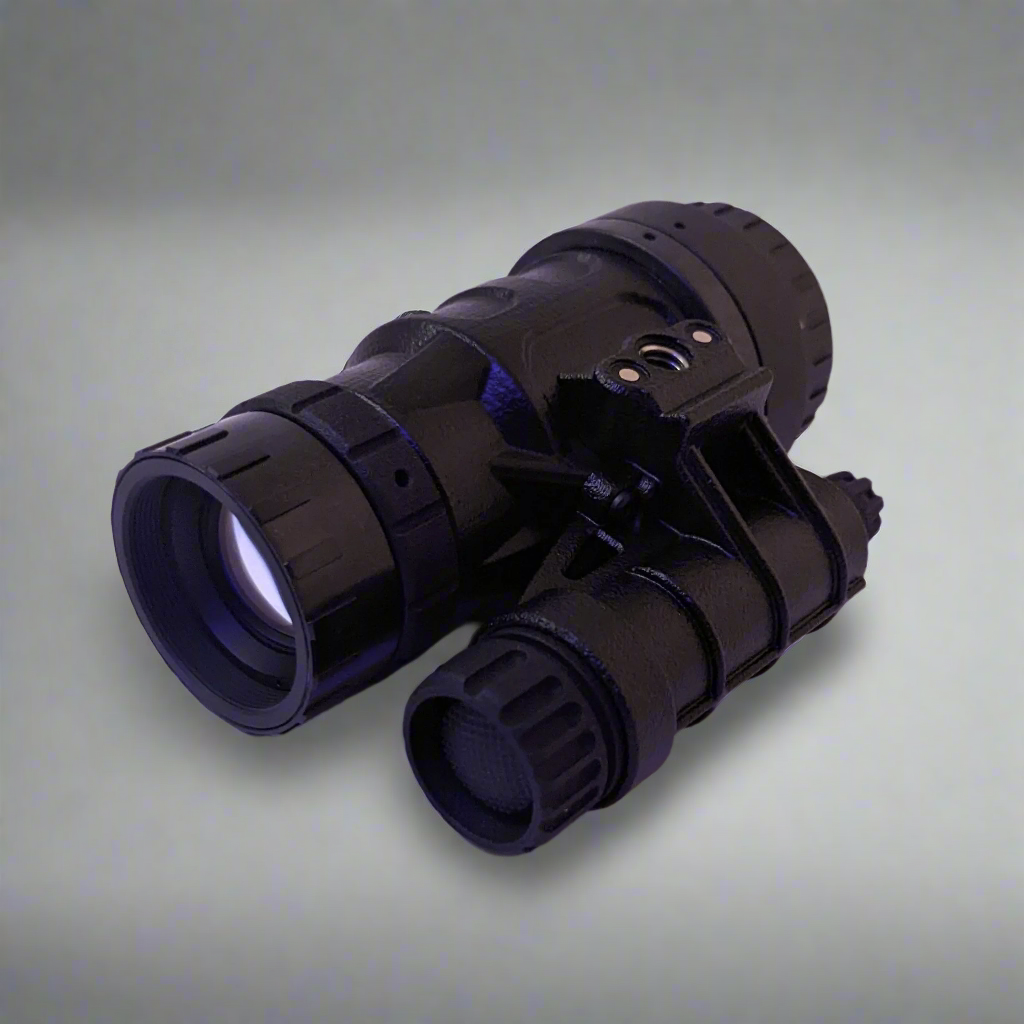

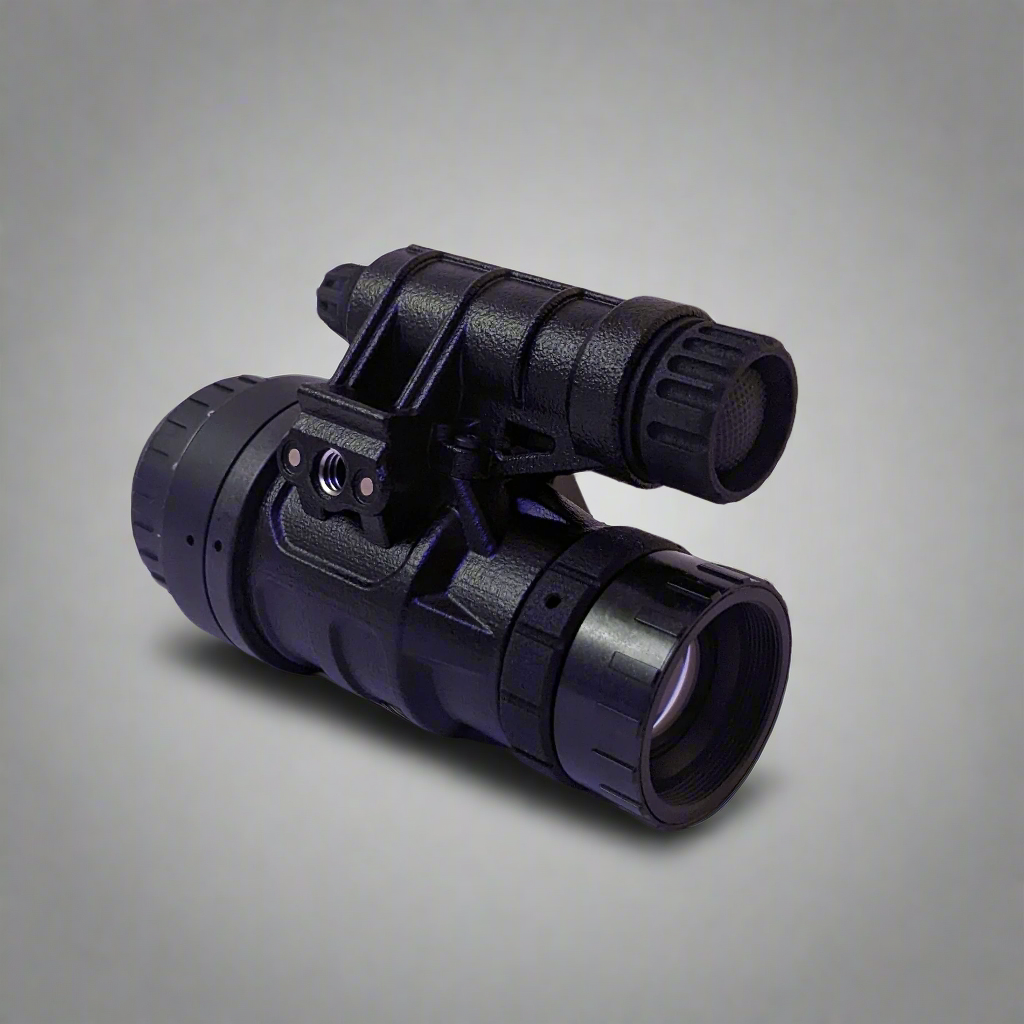

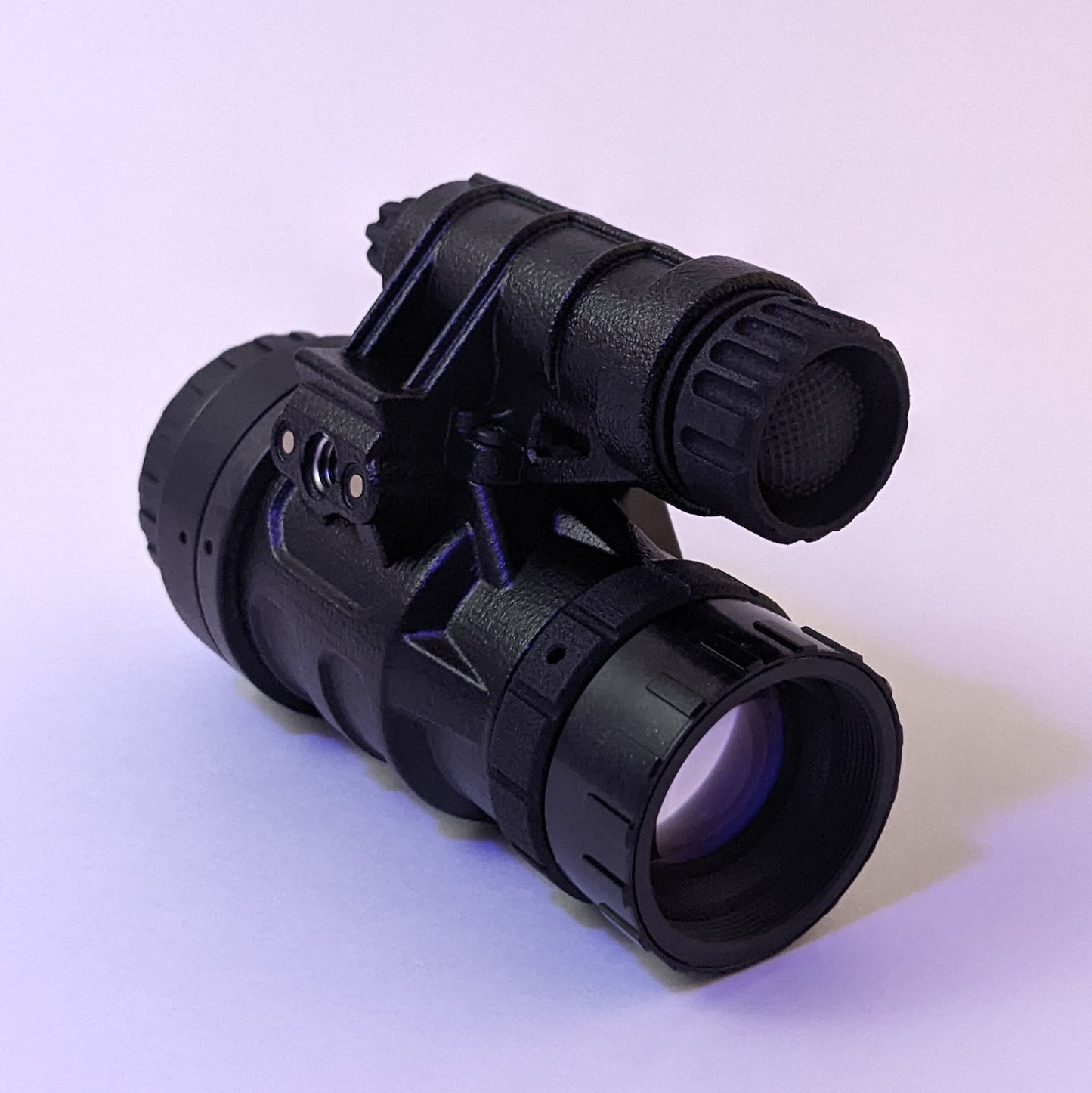

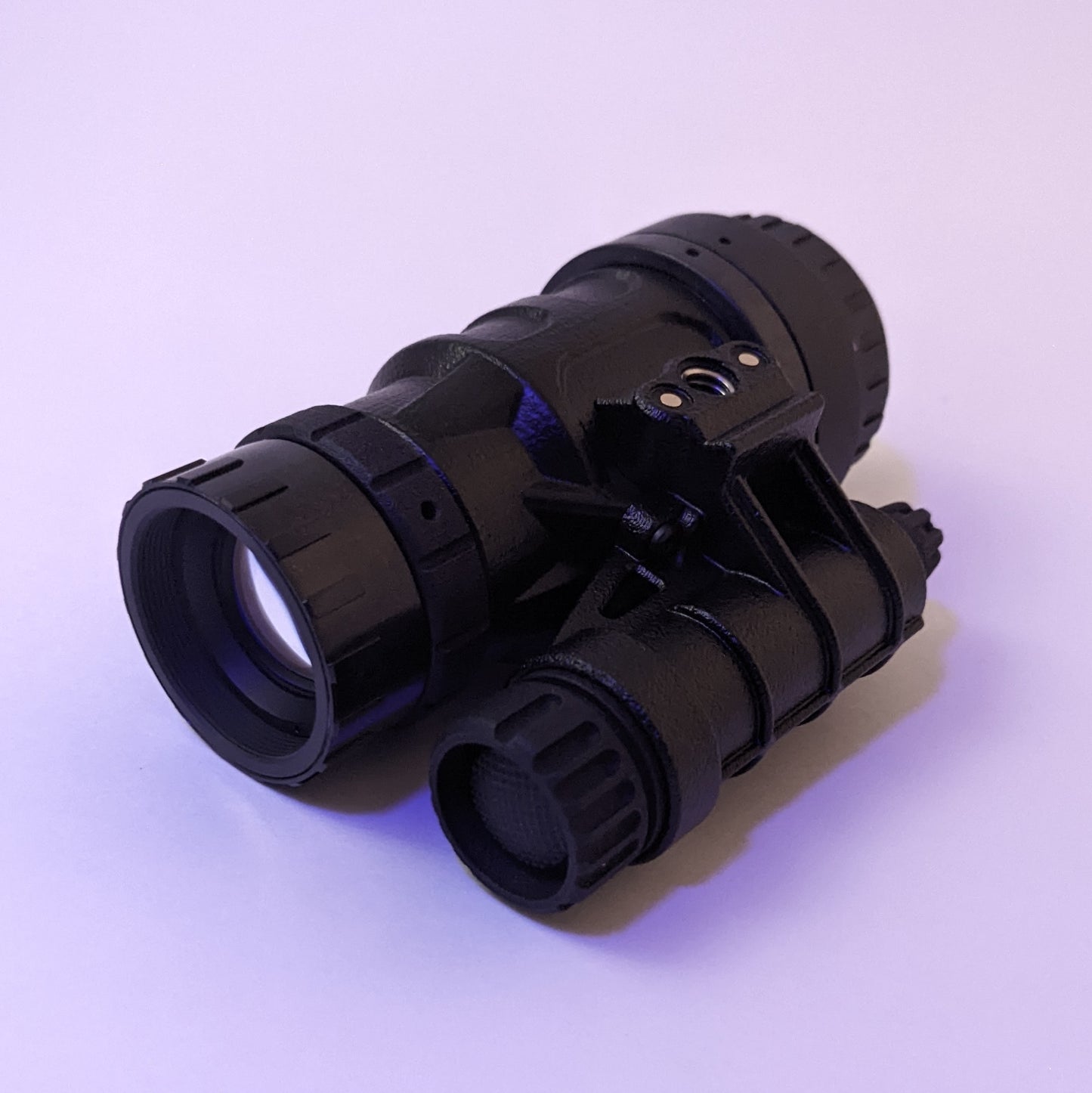

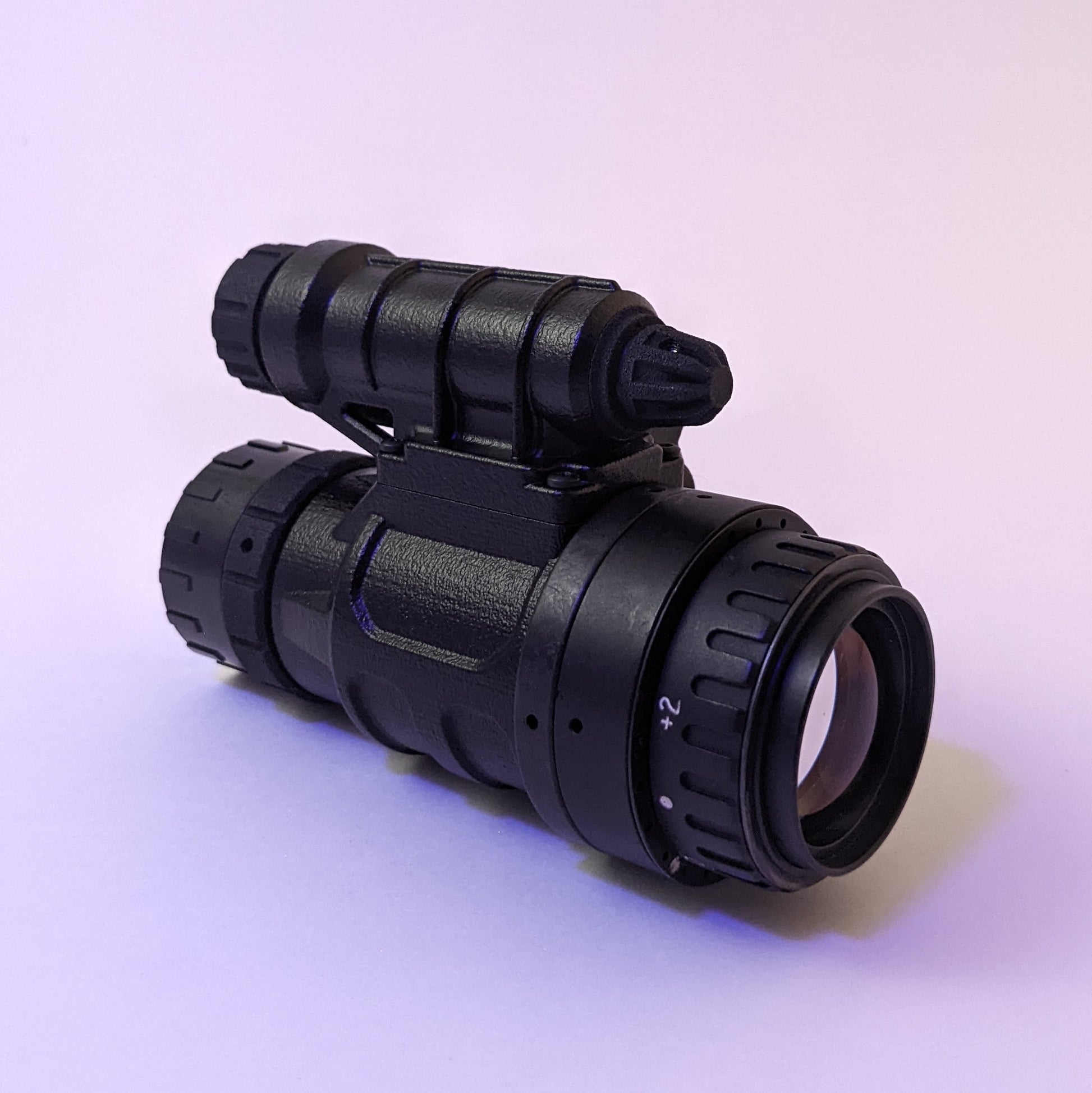

The MOD-14 Phantom – The Pinnacle of Lightweight Design and Modularity

Introducing the MOD-14 Phantom, the lightest monocular housing on the market, meticulously engineered for maximum weight savings and exceptional modularity. Designed to seamlessly integrate with our MOD-31 Nightfighter Modular Bridge System, the Phantom is perfect for both newcomers and seasoned night vision enthusiasts seeking cutting-edge technology.

Key Features

The MOD-14 Phantom weighs 2.5 times less than a standard PVS-14 housing, The Phantom sets a new benchmark as the lightest monocular housing ever released, featuring manual gain control, modular functionality, and seamless integration with the MOD-31 Nightfighter Modular Powered Bridge.

Ultra-Lightweight Design: Weighs only 1.6 oz, less than half the weight of a standard PVS-14 housing (4 oz).

Complete Monocular Weights
Standard Mil-Spec PVS-14	11 oz
MOD-14 Phantom with Standard Lenses (lw diopter)	7.8 oz
MOD-14 Phantom with RPO 3.0 Lenses	6.4 oz
Bridged Monocular Weights
Mil-Spec PVS-14s on Standard (Non-Modular) Bridge	26–28 oz
Dual Phantoms on Nightfighter Bridge (Noctis)	18 oz
Dual Phantoms on Nightfighter Bridge (RPO 3.0)	15.5 oz (under PVS-31 weight!)

Manual Gain Control

Plug-and-Play Compatibility: Works seamlessly with standard MX-11769 image intensifier tubes—no special adapters needed.

Fully Analog rotary gain knob, instead of push buttons.

Modular Ecosystem with the MOD-31 Nightfighter Bridge

Designed from the ground up to work with the MOD-31 Nightfighter Modular Powered Bridge, enabling centralized power management, auto shutoff, and tool-free attachment using captive thumb screws. This setup enables you to transform your monoculars into a cohesive binocular system in seconds.

How does the modular functionality work?

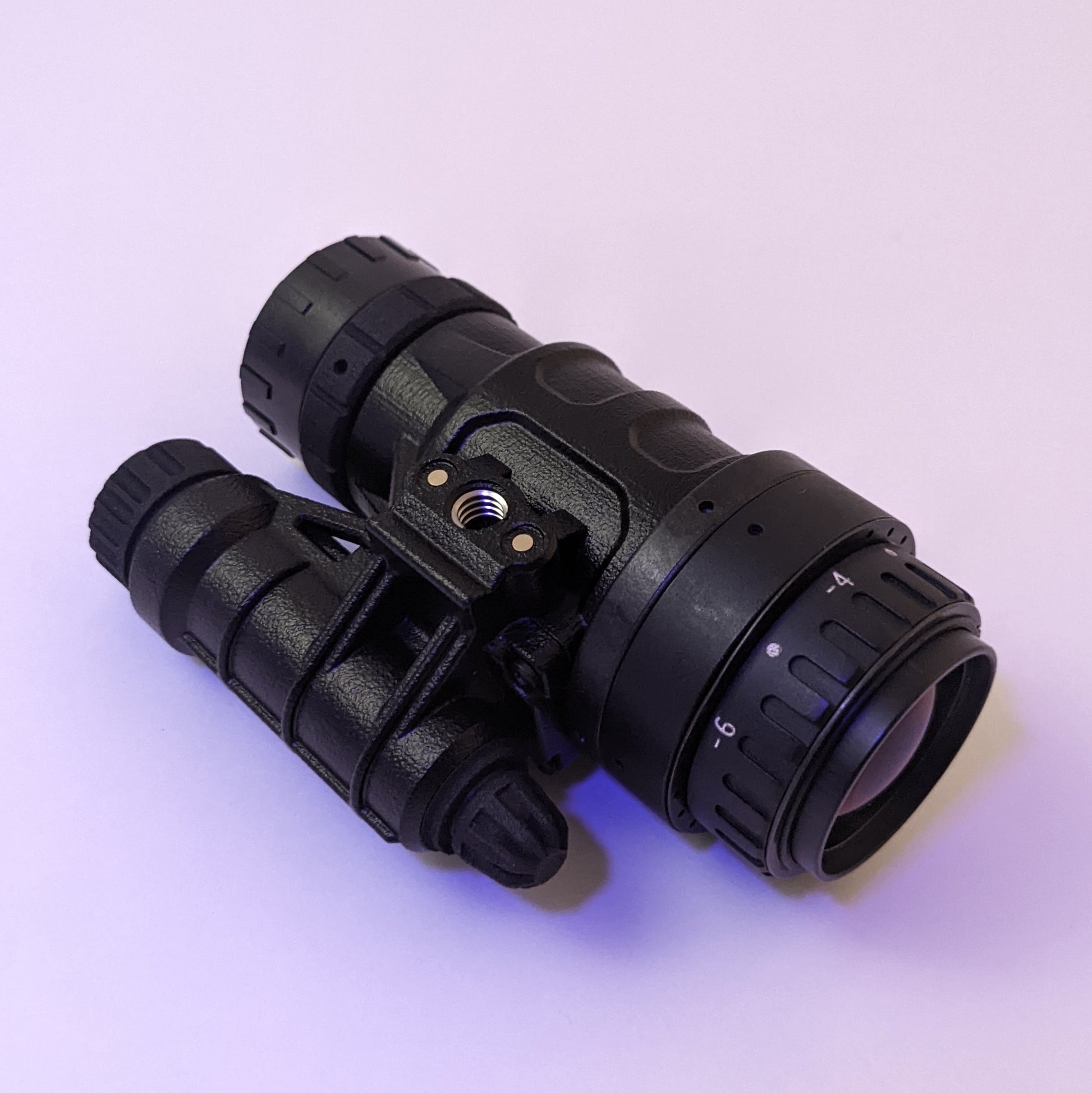

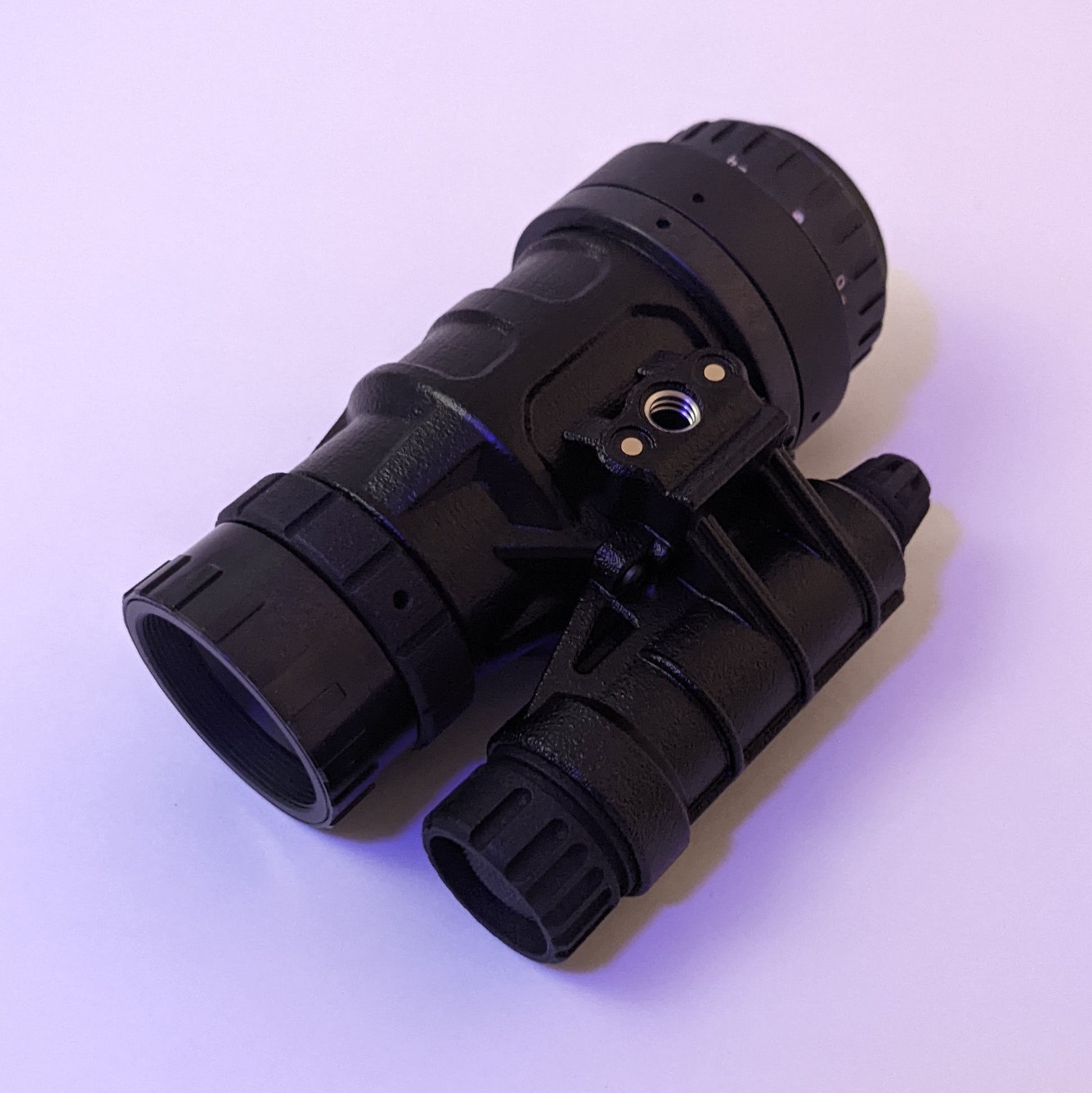

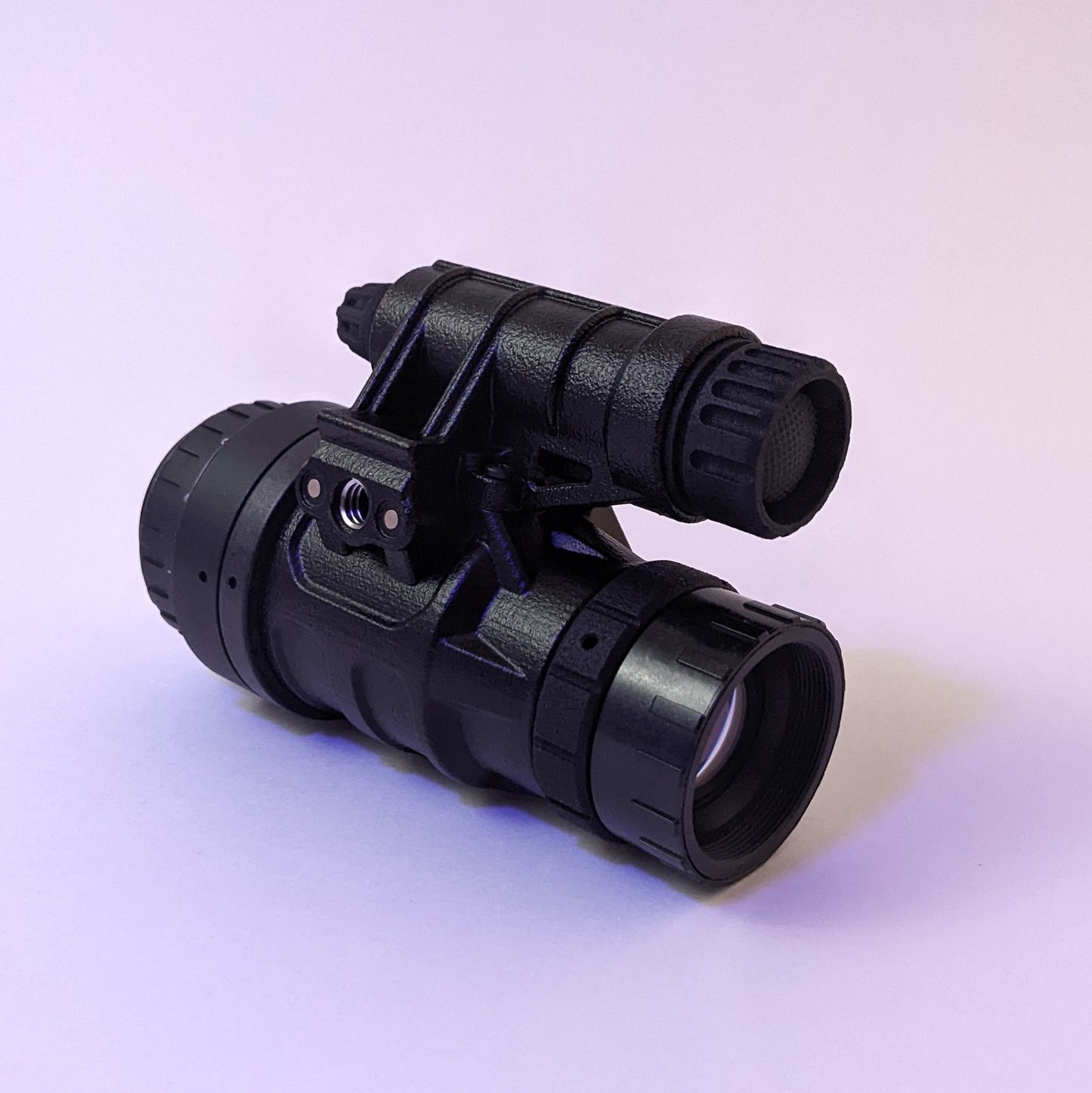

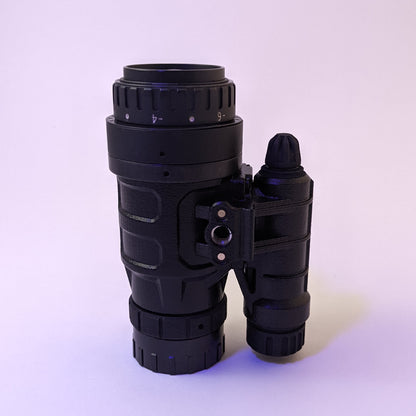

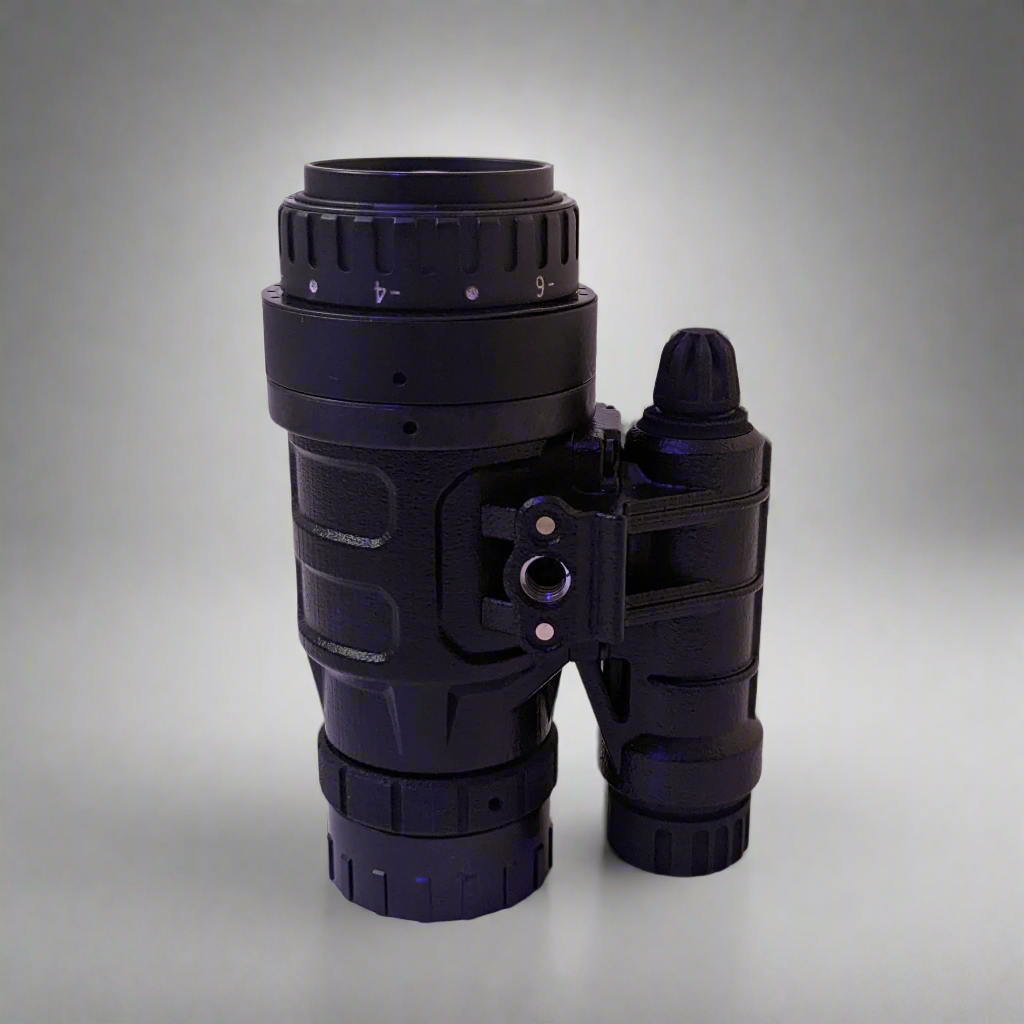

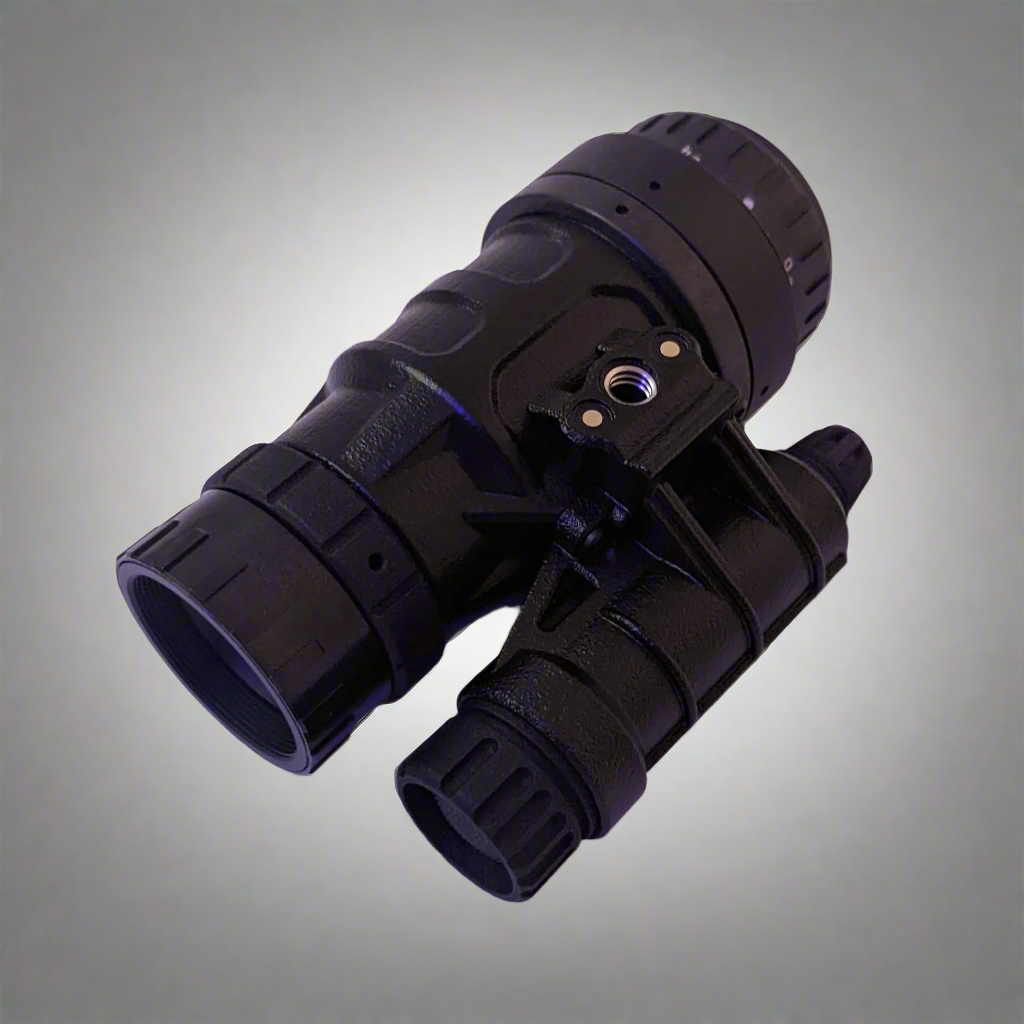

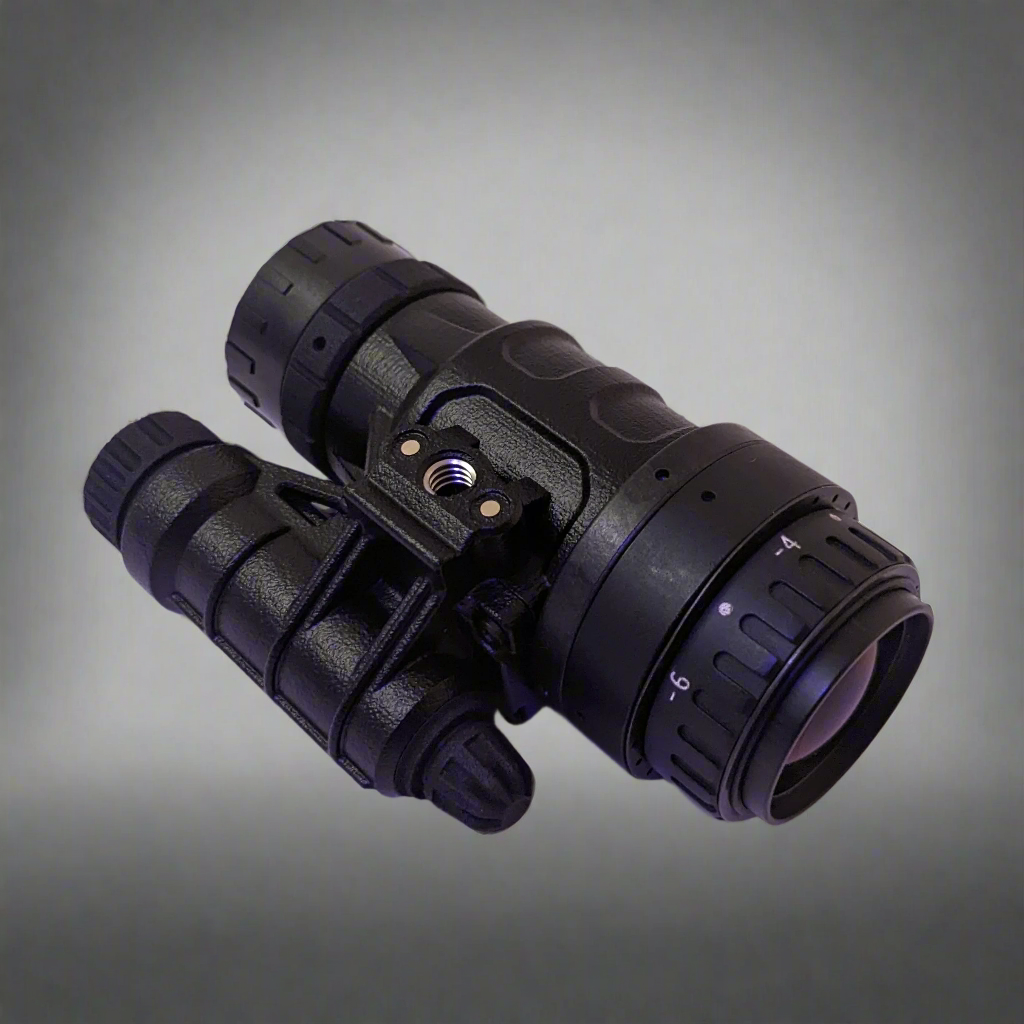

The Phantom re-purposes the electrical contacts near the 1/4-20 mounting interface, which were originally used for a shutoff feature with some PVS-14 arms and accessories. Instead, these contacts now allow for power routing from external sources, such as the Nightfighter powered bridge system. This enables centralized power control and auto shutoff functionality when used with the bridge.

Tool-Free Mounting
Attach or detach the Phantom from the Nightfighter bridge using captive thumb screws—no tools required.

External Power Input
Power is transmitted through electrical contacts on the mounting interface, allowing centralized power routing from the Nightfighter bridge.

Auto Shutoff and IPD Stops
The Nightfighter bridge includes IPD (Interpupillary Distance) stops that can be fine-tuned for a comfortable viewing experience. Once set, your chosen IPD remains consistent. The bridge also supports auto shutoff on articulation, helping streamline power management.

Flexible Field of View Options:
Compatible with both standard 40° and 55° wide field-of-view (FOV) configurations via interchangeable MOD-14 arms on the Nightfighter bridge.

Advanced Power Management:
Built-in electronics handle automatic switching between the internal CR123A battery and external power from the Nightfighter bridge. Enjoy seamless integration and simplified battery management.

Upgradeable to Dedicated Binocular Configuration:
The MOD-14 Phantom uses the same pod design as our upcoming Nightfighter-AG (Auto Gain) and Nightfighter-MG (Manual Gain) dedicated binocular housings.
By replacing the battery compartment with the MOD-31 pod topper (available soon), you can convert your MOD-14 Phantom into a dedicated binocular pod—enjoying the benefits of a dedicated binocular setup without purchasing entirely new devices.

Specifications

Weight: 1.6 oz (housing only)

Materials: High-strength polymer, stainless steel hardware

Image Intensifier Tubes: Standard 18mm MX-10160 and MX-11769 tubes

Lenses: Choice of PVS-14 or ANVIS lenses (select your preference when ordering)

Power Source: Single CR123A battery

Battery Life: Approximately 40+ hours due to efficient power management

Kit Includes

MOD-14 Phantom Monocular Housing

Custom Lightweight Eyepiece Housing / Diopter

Tube Retainer Ring

Close to Infinity Focus Stop Ring (D-Ring)

Hard Case

Note: Image intensifier tubes, lenses, and other accessories are not included and must be purchased separately.

Why Choose the MOD-14 Phantom?

The Phantom offers a truly next-generation lightweight solution, designed from scratch for maximum modularity. With its unmatched low weight, flexible field of view options, and modularity, the Phantom empowers you to build the night vision system that perfectly matches your evolving requirements.

A Truly Modular System:

Many users desire a modular bridged monocular system where they can easily hand off one of the monoculars to a friend or partner if needed. This has been difficult with other systems that require tools. With the MOD-14 and MOD-31 Nightfighter system, it's now truly possible—detach a monocular in seconds without any tools.

Unmatched Lightweight Performance:
Significantly reduces neck strain and operator fatigue during extended use. The lightest monocular housing on the market, and compatible with the lightest powered bridge system.

Advanced Modularity:
Adapt to changing mission requirements by easily switching between monocular and binocular configurations and varying fields of view.

Future-Proof Investment:
Benefit from an upgradeable design that evolves with advancing technology—transition to a dedicated binocular system without needing entirely new equipment. Or enjoy the benefits of a quick detachable fully modular system using the MOD-14 arms on the Nightfighter bridge.

Transferable Lifetime Warranty

We stand behind the quality and durability of our products. The MOD-14 Phantom comes with a Transferable Lifetime Warranty, ensuring peace of mind with your purchase.

Made in the USA

Proudly designed, manufactured, and assembled in the United States.

Currently Restricted to U.S. Sales Only

Due to export regulations, we can only fulfill orders within the United States at this time.

Additional Information

Lead Times: Please allow ~8-12 weeks for order processing and fulfillment. Contact us with any questions regarding lead times.

Shipping:

Domestic Shipping: Free shipping within the United States.

International Shipping: Not available due to export restrictions.

Stay Connected

Stay updated with the latest news, product announcements, photos, and videos by following us on Instagram at @nightvision.plus

Customer Support

If you have any questions or need assistance, please reach out via our contact page or send us a direct message on Instagram.

Frequently Asked Questions

Q: How does the MOD-14 Phantom integrate with the MOD-31 Nightfighter Modular Bridge?

A: The MOD-14 Phantom is designed with modularity in mind. It attaches to the Nightfighter bridge using captive thumb screws—no tools required. Power is transmitted through the two electrical contacts on the mounting interface, allowing for centralized power control and auto shutoff functionality when used with the bridge.

Q: Can I upgrade my MOD-14 Phantom to a dedicated binocular system in the future?
A: Yes. By replacing the battery compartment with the MOD-31 pod topper (available soon), you can convert your Phantom into a dedicated binocular pod compatible with the Nightfighter-AG (Auto Gain) or Nightfighter-MG (Manual Gain) systems. Or you can continue to use it as a quick detachable fully modular system, utilizing the MOD-14 arms on the Nightfighter bridge.

Q: What lenses are compatible with the MOD-14 Phantom?
A: The MOD-14 Phantom is compatible with either PVS-14 or ANVIS lenses. Please select your preferred configuration when placing your order.

Q: Does the MOD-14 Phantom come with image intensifier tubes and lenses?
A: No, image intensifier tubes, lenses, and other accessories are not included and must be purchased separately.

Patent Pending
