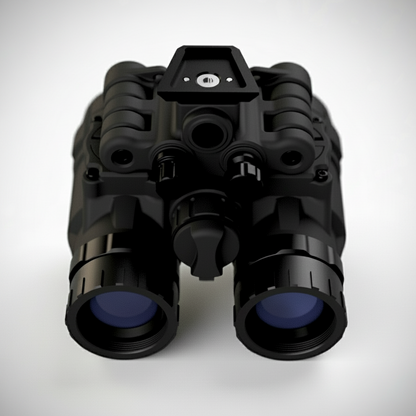

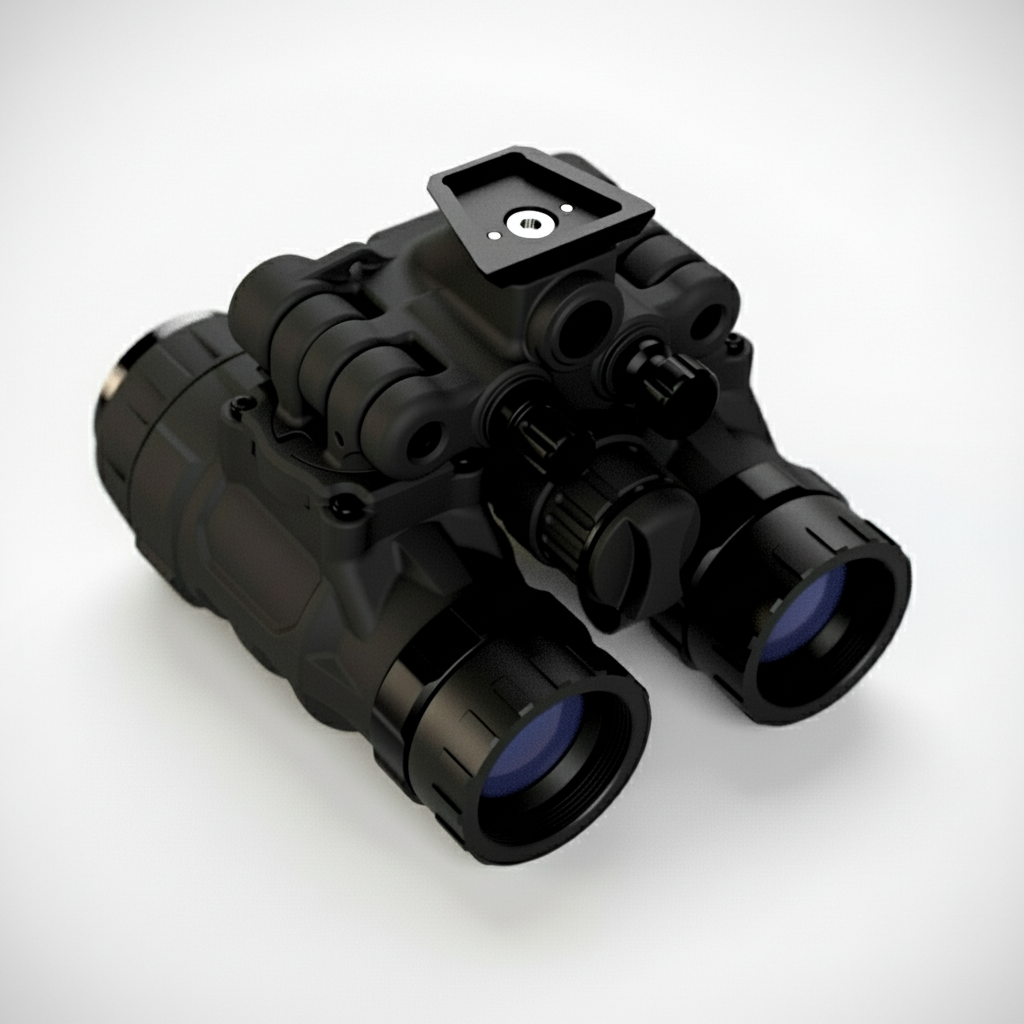

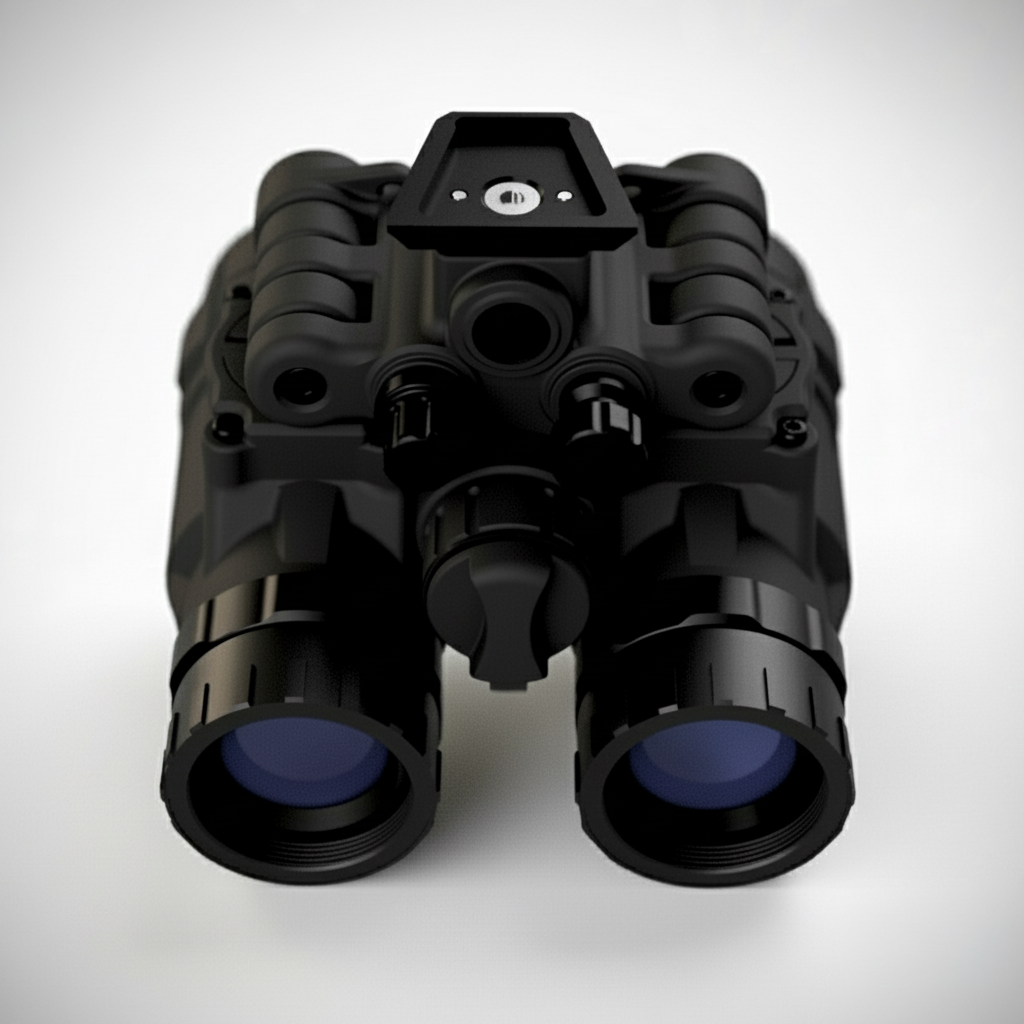

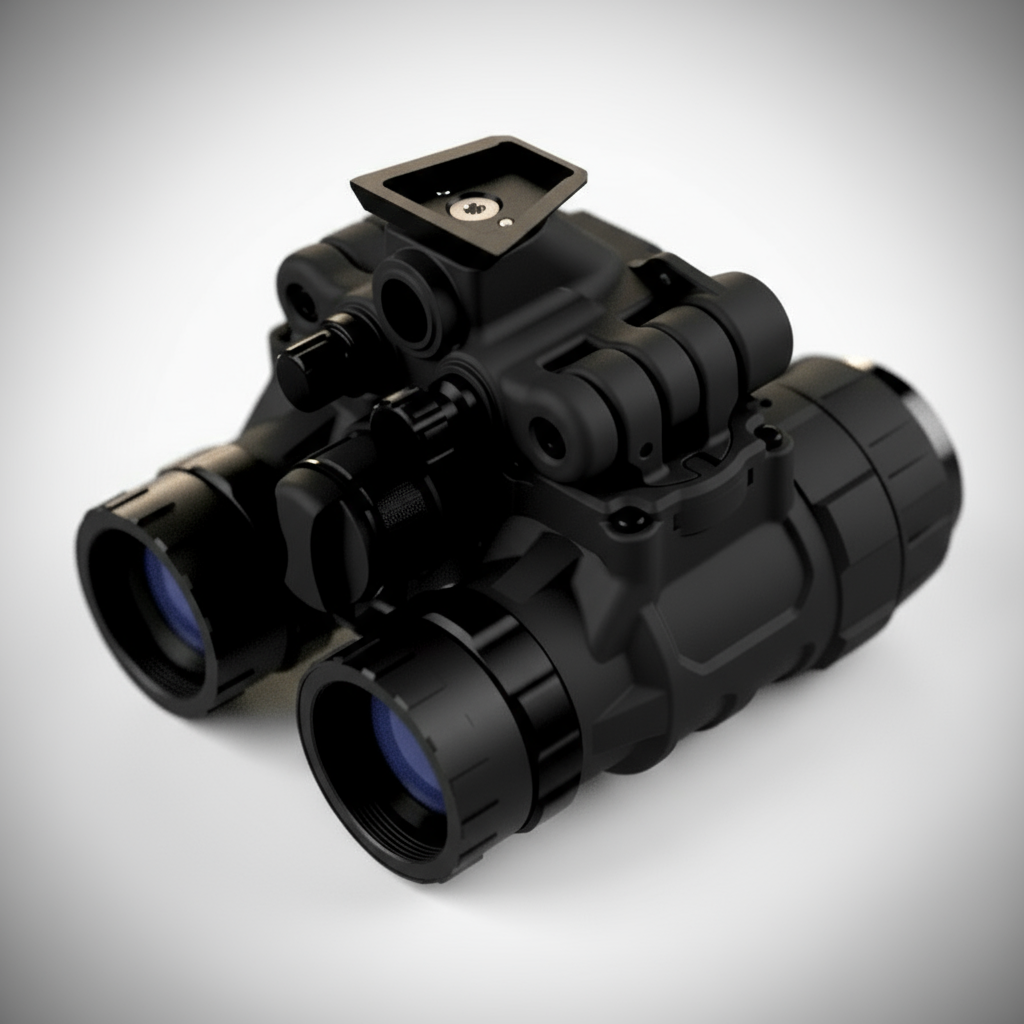

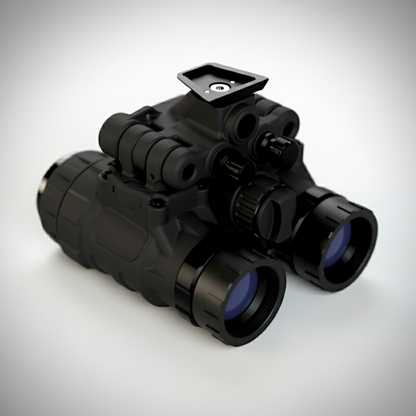

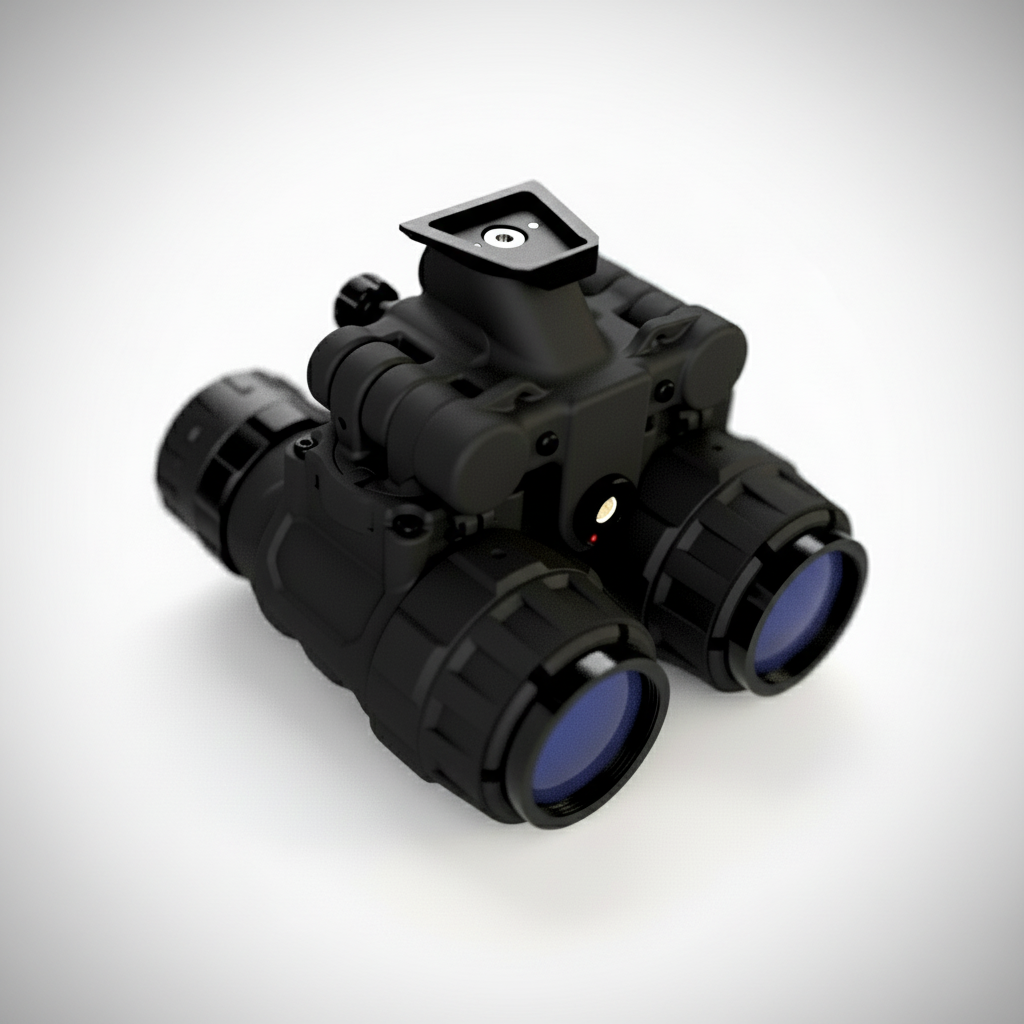

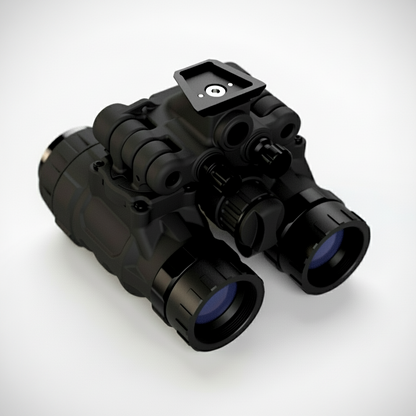

MOD-31 Elite | Professional Panning Housing

Holiday Launch Bonus:

Every MOD-31 Elite includes a free Fischer battery pack (CR123 + AA capable), Fischer cable, and a free mini-rail thermal arm compatible with Breach, Sidekick, and similar thermals.

Lead Time: 8-12 weeks

Overview

The MOD-31 Elite is the premium evolution of the Nightfighter platform.
Built for users who want a fully featured modular binocular housing with:

• Panning + Articulation (40° to 55° variable panning)

• A 4-pin Fischer port

• A real Grayhill rotary switch

• Integrated IR illuminator

• Manual gain control

• Full MOD NODS ecosystem compatibility

All at an extremely competitive system weight.

The Elite ships fully featured. No add-ons, no configuration fees, and no compromises.

Key Features

Fischer External Power

Standard 4-pin Fischer receptacle mounted at the rear of the housing.
Compatible with PVS-31 battery packs and other Fischer-standard remote battery packs.

Holiday bonus: Includes free battery pack and cable.

Grayhill Rotary Power Switch

A genuine Grayhill rotary.
Positive, crisp, and tactile with a satisfying detent.
Instantly familiar to anyone with time behind USGI systems.

Controls housing power and the integrated IR illuminator.

Integrated IR Illuminator

Short-range navigation and admin illuminator built into the top of the bridge behind an IR-transparent protective window.

Always available. Simple to use. No helmet accessories required.

Manual Gain Control

Dedicated analog gain knob.
Fully compatible with MX-11769 tubes with pigtail.

Panning + Articulating Architecture

Pods articulate independently and offer two FOV alignments using mechanical hard stops:

• 40° standard

• 55° wide

Pods power off automatically when rolled out and re-activate when returned to position.

MOD NODS Modular Ecosystem

The Elite is fully compatible with the entire MOD NODS platform.

• Pods can be removed and used as standalone modular monoculars using MOD-14 Phantom battery compartments

• Either side can be replaced with thermal using the mini-rail thermal arm

• RH25 / PFalcon mounts in development


• True plug-and-play modularity

Holiday bonus: Every Elite includes a free mini-rail thermal arm.

Included Lightweight Diopter Housings

Every housing includes lightweight diopter housings for PVS-14 eyepieces.
No need to source your own.

Complete System Weights

Fully built with optics and included lightweight diopters:

• RPO 3.0: ~16 oz

• RPO 4.0: ~16.5 oz

• Qioptic / Bright-Path: ~18.75 oz

• Fujinon (Noctis / NVD): ~19.5 oz

Construction

• Ultra high-impact resistant polymer (ABS, Nylon, Polycarbonate)

• 6061-T6 aluminum dovetail

• Stainless steel hinge hardware

• Designed to meet IP68 and MIL-STD-810H impact and water resistance requirements

Durable, rigid, and impact-resistant without unnecessary weight.

Compatibility

• Tubes: MX-11769 (manual gain pigtail compatible)

• Optics: PVS-14 or ANVIS eyepieces and objectives (select when ordering)

• Power: 4-pin Fischer remote packs + internal CR123A (AA/AAA optional cap, sold separately)

• Thermal: Mini-rail compatible thermals; RH25/PFalcon mounts coming soon

In the Box

• MOD-31 Elite binocular housing

• Panning + articulating arms (if selected)

• Lightweight diopter housings

• Tube retainer rings

• Focus stop D-style rings

• Free Fischer battery pack (CR123 + AA compatible)

• Free mini-rail thermal arm

Image intensifier tubes and objectives sold separately.

Why MOD-31 Elite

• Designed at the request of Mil, LEO, and (based) dirty civilians

• Fischer power standard

• Grayhill rotary switch

• Integrated IR

• Manual gain

• Panning + articulating

• Modular pods and thermal support

• Lightweight

• Lifetime transferable warranty

• Made in the USA

If you want the complete MOD-31 experience with every major feature included, this is the one to choose.

Warranty

Lifetime transferable warranty.
Designed, manufactured, and assembled in the USA.

Restrictions

U.S. sales only. Export not available.

Lead Time

Please allow 8–12 weeks for fulfillment.
Contact us with any questions.
